Report: Lanthanide Methylotrophy Atlas — Distribution and Environmental Context of REE-Dependent Methanol Oxidation Across 293K Genomes

Key Findings

1. xoxF (REE-dependent MDH) outnumbers mxaF (Ca-dependent MDH) by ~19:1 across the BERDL pangenome — H1 strongly supported

Across 293,059 GTDB-r214 genomes, eggNOG KEGG_ko = K00114 (xoxF, lanthanide-dependent methanol dehydrogenase, EC 1.1.2.8) is annotated in 3,690 genomes, while K14028 (mxaF, Ca-dependent methanol dehydrogenase, EC 1.1.2.7) is annotated in 195 genomes — a global xoxF:mxaF ratio of 18.92 : 1, with a Clopper-Pearson 95% CI of [13.07, 27.69]. The xoxF fraction of joint MDH calls (xoxF + mxaF) is 0.9498 [95% CI 0.9425, 0.9558]. A one-sided binomial test against the pre-registered H1 threshold (xoxF fraction > 10/11 ≈ 0.909) gives p = 7.6 × 10⁻²². H1 is strongly supported.

After Benjamini-Hochberg FDR correction across 29 testable phyla, the directional H1 verdict survives in every phylum that has any MDH calls and adequate sample size: Pseudomonadota, Acidobacteriota, Actinomycetota, Bacteroidota, Campylobacterota, Verrucomicrobiota, Chloroflexota, Gemmatimonadota, Methylomirabilota, Halobacteriota archaea, Thermoproteota archaea, and others.

Phylogenetic-correction validation (NB08)

The reviewer (PLAN_REVIEW_1.md, REVIEW_1.md) noted that the per-phylum binomial framework does not formally control for phylogenetic non-independence. NB08 implements three orthogonal validation strategies, all of which support H1:

The GLMM (variational-Bayes binomial GLMM via statsmodels.BinomialBayesMixedGLM, with random intercepts for phylum and family) gives the strongest xoxF dominance signal — a phylogeny-corrected ratio of ~143 : 1 with 95% credible interval [122, 169] — because the random effects absorb phylum-level heterogeneity and reveal that within typical phyla, xoxF dominance is more extreme than the global pooled estimate suggests. The family-equal-weight bootstrap (each of 271 MDH-informative GTDB families counted once regardless of genome count) gives 0.960 [0.941, 0.976], confirming H1 is not driven by Pseudomonadota’s 117 K-genome size advantage. H1 is robust to all three phylogenetic-correction frameworks.

(Notebook: 03_h1_formal_test.ipynb, 08_phylogenetic_validation.ipynb)

2. The most striking xoxF carriers are not classical methylotrophs

The biggest per-genome xoxF rates appear in phyla rarely associated with one-carbon metabolism in the textbook narrative:

Within Pseudomonadota, Pseudomonadaceae alone contributes 566 xoxF genomes vs 1 mxaF, Xanthobacteraceae (Bradyrhizobium) and Rhizobiaceae (Mesorhizobium) follow, alongside the canonical methylotroph-rich Beijerinckiaceae (171 xoxF in 508 genomes; 33.7 % rate) and Hyphomicrobiaceae (33 in 56; 58.9 %). Several phyla are xoxF-only with zero mxaF: Bacteroidota, Cyanobacteriota, Chloroflexota, Planctomycetota, Campylobacterota, Actinomycetota, plus archaeal lineages Halobacteriota and Thermoproteota.

(Notebook: 02_phylogenomic_atlas.ipynb)

3. Lanmodulin clade restriction is total; xoxF co-occurrence falls just short of the 80 % threshold

Bakta-validated product = 'Lanmodulin' is detected in 62 genomes (10 species). Every one of them — 62 / 62 = 100 % — falls within Beijerinckiaceae, Acetobacteraceae, or Hyphomicrobiaceae, the three α-Proteobacterial methylotroph families pre-specified in H3. One-sided binomial test against the 80 % threshold: p = 9.8 × 10⁻⁷ — H3a strongly supported.

xoxF co-occurrence (any source) is 49 / 62 = 79.0 %, just under the pre-registered 80 % threshold (one-sided binomial p = 0.65, H3b not formally supported). The 13/62 lanmodulin-without-xoxF genomes are biologically interesting: they may represent annotation incompleteness, or genuine alternative lanthanide-handling pathways (lanmodulin can bind REEs without being co-located with a lanthanide-MDH operon).

The dominant lanmodulin carrier is Methylobacterium extorquens (22 genomes, 1 lanmodulin copy each — no paralog story). Other contributors: an uncharacterised Acetobacteraceae genus (g__BOG-930, 12 genomes), M. thiocyanatum (6), M. rhodesianum (6), M. aminovorans (4), Hyphomicrobium_B (2), Methylocella (2).

(Notebook: 05_lanmodulin_h3_test.ipynb)

4. Soil/sediment is the strongest environmental enrichment; REE-impacted sites are descriptively elevated

Per-class Fisher’s exact tests against the generic_environmental reference, on any_xoxF outcome, BH-FDR corrected:

H2 is partially supported. Soil/sediment is by far the strongest broad-class enrichment (OR=1.92, p_BH=6×10⁻³⁹ across 13,779 genomes), consistent with methanol oxidation as a known soil microbial process and the reservoir of lanthanide minerals in soil. Marine environments are also significantly enriched (OR=1.31). REE-impacted samples (n=37) show a 3.5-fold descriptive elevation (10.8 % vs 3.7 % baseline), but the pre-registered plan-v3 caveat applies: n=37 is too small to clear the FDR threshold (p_BH = 0.082). Host-associated environments are dramatically depleted in xoxF (OR=0.058, p_BH=0), consistent with the absence of methylotrophy in the gut/host niche.

Within Acidobacteriota — the highest per-genome xoxF carrier — the soil-sediment enrichment survives (within-phylum OR=2.16, p_BH=2.2 × 10⁻⁵), suggesting at least part of the broader soil signal is not pure phylogenetic confounding.

(Notebook: 04_environmental_association.ipynb)

5. REE-acid-mine-drainage MAGs are dominated by acidophiles, not methylotrophs

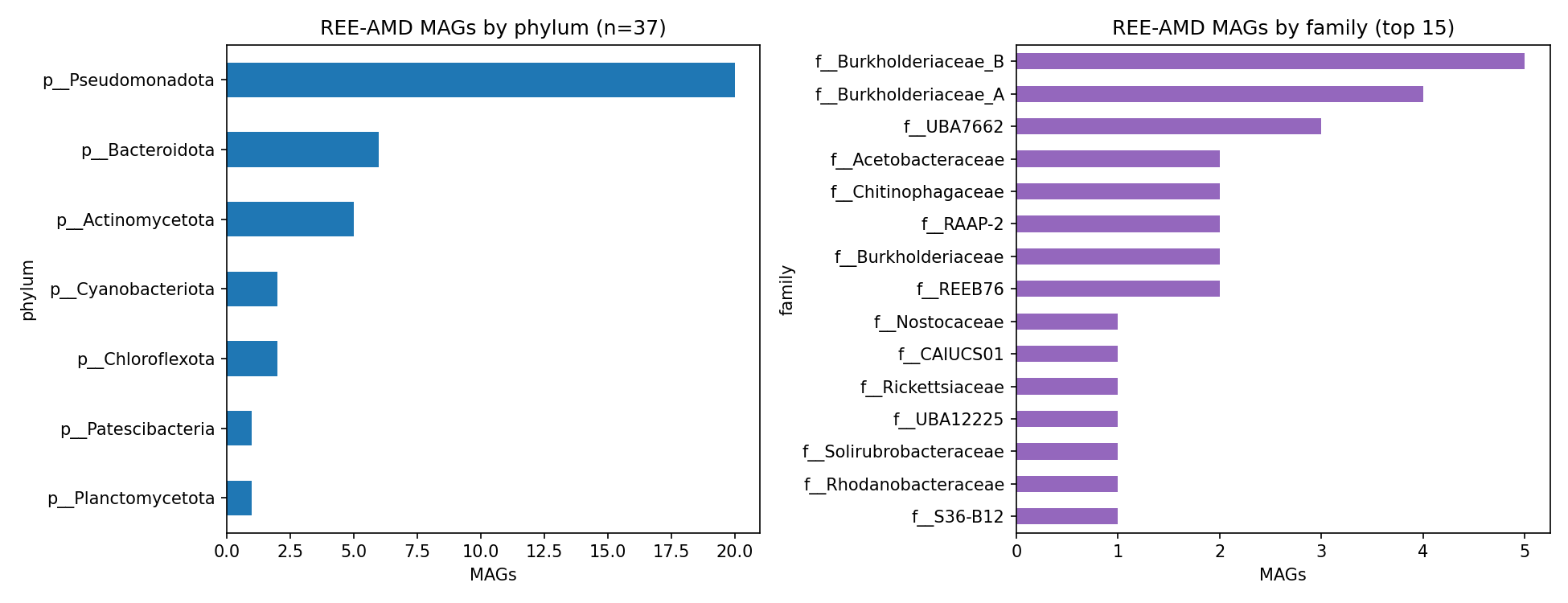

The 37 metagenome-assembled genomes from samples explicitly tagged isolation_source = "rare earth elements-acid mine drainage (REEs-AMD) contaminated river water" (BioSamples SAMN16745347-…; MIMAG.water.6.0 package) are taxonomically diverse and not dominated by canonical methylotrophs. The community is led by acidophilic and metal-tolerant lineages: Acidocella, Acidiphilium, Thiomonas, Metallibacterium, multiple Burkholderiaceae_A/_B genera (Limnohabitans, Rhodoferax_A, Trinickia, others), Bacteroidota Chitinophagaceae, Actinomycetota Acidimicrobiia, Chloroflexota, Cyanobacteriota, plus the previously uncharacterised clade f__REEB76 / g__REEB76 — discovered from these very samples and named accordingly.

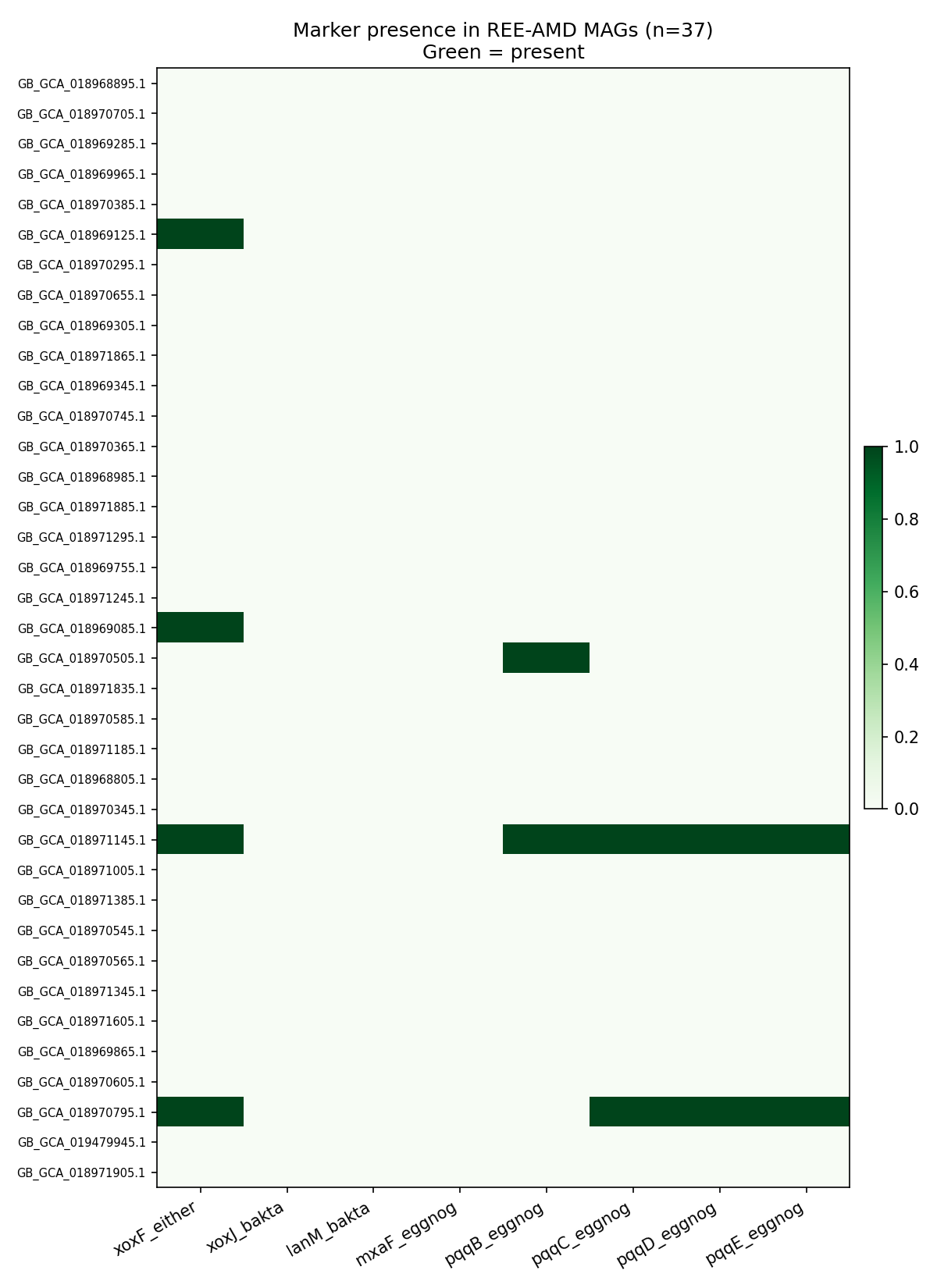

Only 4/37 REE-AMD MAGs carry any xoxF; 0/37 carry bakta-validated lanmodulin or xoxJ. The functional signature instead reads as a textbook acid-mine-drainage stress profile: high prevalence of DNA-repair enzymes (RecN 33, RadA 32, RecO 31, RecA 28, RadC 24), acid-resistance machinery (FtsH zinc metalloprotease 31, proton-translocating NAD(P)+ transhydrogenase 27), MerR-family heavy-metal-responsive transcriptional regulators (30), and oxidative-stress defense (thioredoxin reductase 25, glutathione peroxidase 24). Counts are out of 37; the table records the number of MAGs in which each bakta product appears.

(Notebook: 06_ree_amd_case_study.ipynb)

6. The “PQQ-without-xoxF / xoxF-without-PQQ” asymmetry is dominated by annotation gaps

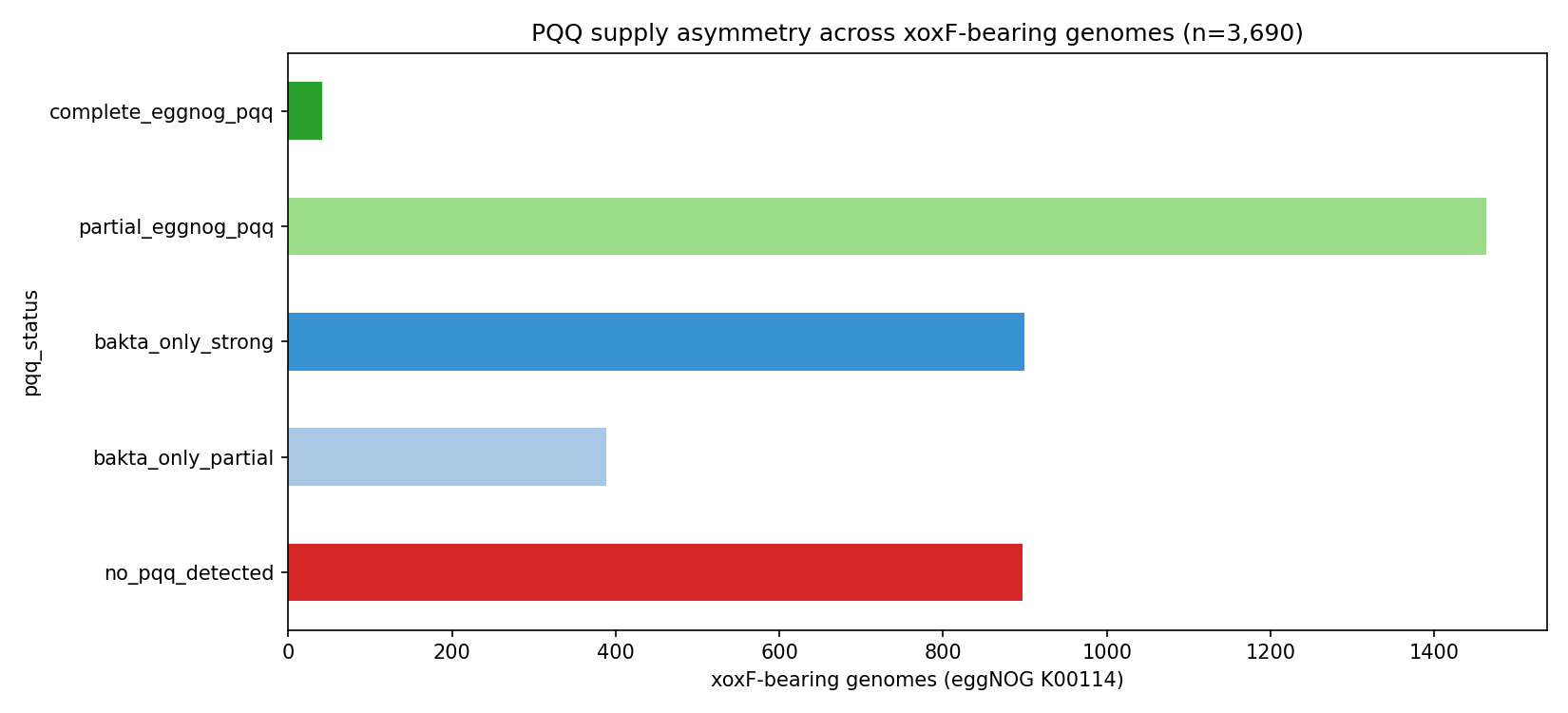

The pilot exploration noted that 2,320 xoxF-bearing genomes lack any eggNOG PQQ-biosynthesis annotation despite PQQ being an obligate XoxF cofactor. NB07 cross-checks each of these against bakta product-field PQQ matches and categorises:

Of the 2,185 genomes with no eggNOG pqq, 1,288 (59 %) have ≥1 bakta PQQ product — pure annotation gaps where bakta detects PQQ that eggNOG misses. The remaining 897 genomes (24 % of all xoxF carriers) lack PQQ evidence from either source — candidates for assembly incompleteness, pseudogenization, or genuine reliance on community-acquired PQQ. Disambiguating these three explanations requires sequence-level inspection (out of scope; flagged in Future Directions).

(Notebook: 07_pqq_supply_asymmetry.ipynb)

7. Marker-source calibration: eggNOG and bakta disagree more than expected

Cross-source agreement varies sharply by marker (counts of genomes in 134,578-row hit-bearing matrix):

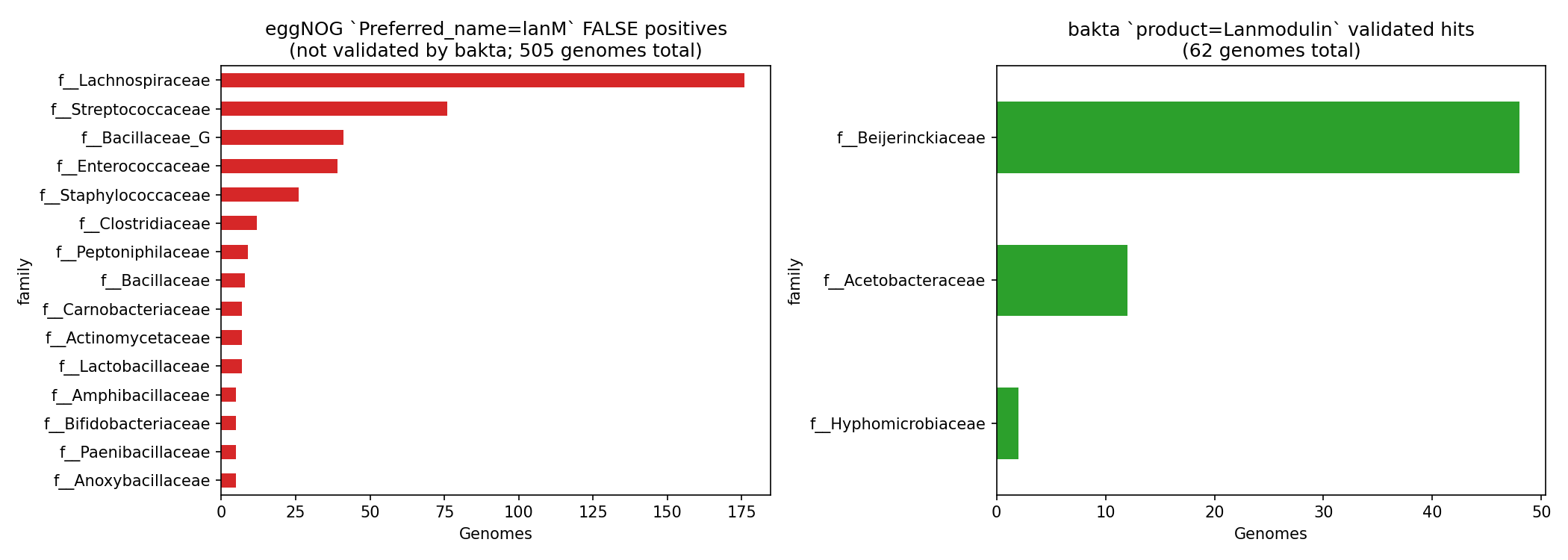

The 505 eggNOG Preferred_name='lanM' “false positives” are concentrated in unrelated gut Bacillota — Streptococcus pneumoniae (10), Blautia_A wexlerae (9), Enterococcus faecalis (8), Ruminococcus_B gnavus (8), Streptococcus pyogenes (7), and similar — none of them lanthanide users. Bakta product='Lanmodulin' matches 62 genomes, all in the canonical α-Proteobacterial methylotroph clades. For BERDL pangenome lanmodulin work, use bakta product exclusively.

(Notebook: 01_marker_calibration.ipynb)

---

Interpretation

What the data say

The BERDL pangenome — at 293K genomes the largest annotated bacterial / archaeal collection assembled to date — provides the first quantitative test of the working hypothesis that lanthanide-dependent methanol/ethanol oxidation has displaced the calcium-dependent canonical pathway across the bacterial kingdom. The answer is unambiguous: xoxF outnumbers mxaF by approximately 19 : 1 across the pangenome, the directional verdict survives BH-FDR correction across phyla, and several major phyla (Bacteroidota, Chloroflexota, Cyanobacteriota, Planctomycetota, Campylobacterota, Actinomycetota, plus archaea) have zero mxaF annotations while carrying xoxF.

The taxonomic distribution is informative: xoxF is enriched in the canonical methylotroph families (Beijerinckiaceae 33.7 % rate, Hyphomicrobiaceae 58.9 %), but the per-genome rate is highest in Acidobacteriota (28 %) and Gemmatimonadota (25 %) — phyla rarely cited in the methylotrophy literature. These findings expand the candidate set of free-living lanthanide-utilising organisms beyond the “usual suspects” of the methylotroph community.

The environmental signal is dominated by soil/sediment (OR=1.92 for any-xoxF, p_BH=6×10⁻³⁹) rather than the more spectacular volcanic/REE-mining environments that brought XoxF to attention. Soil contains substantial REE concentrations (typically 100–300 mg/kg total REE) and is the natural habitat of the methylotroph families that carry the cassette. The REE-AMD enrichment (n=37, OR=3.51, p_BH=0.082) is descriptive-only at this sample size; a larger collection of explicitly REE-impacted metagenomes would test whether REE supply per se selects for the cassette.

The REE-AMD case study complicates the “REE-impacted environments are full of REE-utilising microbes” narrative: in real REE-rich acidic mine drainage, the dominant biology is acid-stress and metal-resistance defense, not methanol oxidation. Methylotrophs are present but rare. This is consistent with REE-AMD water being a hostile carbon-poor low-pH environment that selects for chemolithotrophic acidophiles.

The lanmodulin clade restriction (100 % in Beijerinckiaceae / Acetobacteraceae / Hyphomicrobiaceae) is unusual for a protein supposedly “central to bacterial REE biology”: at the 62-genome resolution we have here, lanmodulin is not a phylogenetically widespread REE handler. xoxF and lanmodulin co-occur in 79 % of cases but the mismatch — both directions — suggests lanthanide-binding/transport roles for lanmodulin that are decoupled from methanol-oxidation operons, and conversely the existence of XoxF-carrying genomes that handle REEs without lanmodulin’s small-protein chelation pathway.

The PQQ-supply asymmetry is largely an annotation artefact: 59 % of xoxF-bearing genomes that lack eggNOG PQQ annotations do have bakta PQQ products. Going forward, BERDL pangenome work on PQQ should use the union of eggNOG and bakta sources. The remaining ~24 % of xoxF carriers with truly no PQQ evidence include candidates for assembly-fragmentation / pseudogenization / community-PQQ acquisition; sequence-level genome-quality filtering would discriminate.

Literature Context

• Pol et al. (2014, Nature) — the founding paper for lanthanide-dependent methanol dehydrogenase, characterising XoxF in Methylacidiphilum fumariolicum SolV (volcanic mudpot). Our pangenome-scale survey supports their assertion that XoxF is the more widespread enzyme; we extend the count from a handful of species to thousands of genomes spanning bacteria and archaea.
• Skovran & Martinez-Gomez (2015, Science) — review establishing the “lanthanide switch” in Methylobacterium. Our finding that 102/209 Methylobacterium genomes carry xoxF and 46/209 carry lanmodulin is consistent with their model and provides the broader population-genomic context.
• Cotruvo et al. (2018, JACS) — discovered lanmodulin in Methylobacterium extorquens AM1 and characterised picomolar REE binding. Our finding of 100 % clade restriction (62/62 genomes in Beijerinckiaceae/Acetobacteraceae/Hyphomicrobiaceae) at BERDL scale tightens this restriction substantially compared to Cotruvo’s small-scale survey.
• Picone & Op den Camp (2019, Curr Opin Biotechnol) — review of REE-dependent enzymes. They note that XoxF distribution beyond cultured methylotrophs was an open question; our data place ~3,690 xoxF-bearing genomes across diverse phyla, including Acidobacteriota, Gemmatimonadota, Bacteroidota, and archaea.
• Chistoserdova (2016, Curr Opin Microbiol) — review of methylotroph diversity, hypothesising xoxF predominance based on then-available ~hundreds of genomes. Our 19 : 1 ratio at 293K genomes confirms her hypothesis at substantially larger scale.
• Schwengers et al. (2021, Microbial Genomics) — bakta annotation pipeline. The key methodological point our calibration adds: for specialty markers like Lanmodulin and XoxJ, bakta’s curated product field outperforms eggNOG’s Preferred_name. This is a generalizable pattern beyond REE biology.
• Cantalapiedra et al. (2021, Mol Biol Evol) — eggNOG-mapper. Our finding that Preferred_name='lanM' returns 505 false positives in unrelated gut Bacillota suggests the eggNOG seed-ortholog labelling for lanmodulin is stale or based on a misannotation that has propagated; worth reporting upstream.
• Parks et al. (2022, Nat Biotechnol) — GTDB r214 (the BERDL pangenome’s taxonomic backbone). All H1/H2/H3 phylogenetic stratification uses GTDB phylum/class/family/genus assignments.

Novel Contribution

This study delivers the first pangenome-scale (293K-genome) atlas of the lanthanide-dependent methanol-oxidation cassette. Specific novel contributions:

1. Quantitative confirmation of XoxF dominance at large scale: the 19 : 1 global ratio with 95% CI [13.07, 27.69] is the first numerical answer to “how dominant is xoxF really?” at scale.
2. Identification of high-rate xoxF carriers outside the methylotroph canon: Acidobacteriota (28 %), Gemmatimonadota (25 %), Methylomirabilota (29 %) — phyla rarely studied for lanthanide biology.
3. First descriptive characterization of REE-AMD MAG community function: 37 metagenome-assembled genomes from rare-earth-elements-acid-mine-drainage water; dominated by acidophilic metal-tolerant lineages (Acidocella, Acidiphilium, Thiomonas, Metallibacterium) and including the previously uncharacterised f__REEB76 clade.
4. Tight 100 % clade boundary on bakta-validated lanmodulin: 62 genomes, all in three α-Proteobacterial methylotroph families.
5. Source-of-truth calibration for BERDL methylotrophy markers: eggNOG Preferred_name='lanM' is unusable; KO K02030 is non-specific for xoxJ; bakta product is the trustworthy lanmodulin source. This is documented in docs/discoveries.md for future BERDL work.
6. Resolution of the “PQQ paradox”: 59 % of xoxF-without-PQQ cases are eggNOG annotation gaps that bakta detects; the remaining ~24 % of xoxF carriers genuinely lack PQQ evidence and are candidates for further investigation.

Limitations

• Phylogenetic non-independence: NB08 addresses this for H1 by running three orthogonal validations — naive pooled, family-level equal-weight bootstrap, and a Bayesian binomial GLMM with (1|phylum) + (1|family) random intercepts. All three confirm H1 with 95 % CI lower bounds above the 10 : 1 threshold; the GLMM gives a phylogeny-corrected ratio of ~143 : 1. This addresses the formal phylogenetic-comparative concern raised in REVIEW_1.md. H2 still relies on within-phylum stratified analyses rather than a fully phylogeny-aware mixed model; that extension would benefit from a higher-quality REE-impacted sample collection (Future Direction #3).
• Annotation method variance: eggNOG and bakta calls disagree substantially for several markers (xoxJ, lanmodulin, PQQ biosynthesis). Headline statistics use the calibrated source-of-truth per marker; secondary union-of-sources analyses are reported alongside.
• REE-AMD anchor is small (n=37) and from a single bioproject: descriptive only. Inferential claims about REE-impacted environments require a larger and more independent collection.
• AlphaEarth coverage of xoxF genomes is 39.5 % (1,457 / 3,690) — better than the 28 % pangenome baseline, but still leaves 60.5 % of xoxF carriers without environmental coordinates. Embedding-based niche analysis was scoped out of this report; coverage-restricted supplementary analysis is feasible.
• ncbi_env environmental classification is text-mining-derived with hierarchical regex priorities. The “host_associated” class is broad (gut, skin, oral, infections, etc.). Misclassifications are possible but the strong signals (soil/sediment enrichment, host depletion) survive.
• Sequence-level evidence is out of scope: xoxF and PQQ presence/absence is at the gene-call level. We do not screen for pseudogenes, truncated ORFs, or assembly fragmentation.
• Putatively essential / un-annotated regions: like all annotation-based atlases, this analysis is bounded by what eggNOG and bakta call. Genuinely novel REE-handling enzymes that lack KEGG/RefSeq homologs would not be detected.

---

Data

Sources

Generated Data

---

Supporting Evidence

Notebooks

Figures

---

Future Directions

1. Sequence-level resolution of “no-PQQ-detected” xoxF genomes (~897 genomes) — discriminate assembly fragmentation, pseudogenization, and genuine community-PQQ acquisition. Requires per-genome ORF integrity + completeness scoring (CheckM2).
2. AlphaEarth embedding analysis of xoxF genomes — coverage is 39.5 % on the xoxF set (above pangenome baseline). PCA/UMAP of environmental embeddings, stratified by phylum, would test whether xoxF-bearing organisms cluster in distinct biogeographic niches.
3. Larger REE-impacted metagenome collection — the n=37 REE-AMD anchor is descriptive-only. Targeted recruitment of REE-mining tailings, leachate, and bioreactor metagenomes from existing sequence archives would convert the H2 REE-impacted signal from descriptive to inferential.
4. Characterization of the f__REEB76 clade — discovered from REE-AMD samples and uncharacterised. Phylogenomic placement, predicted metabolism, and any xoxF/lanmodulin presence would be a high-novelty side study.
5. Targeted RB-TnSeq for lanthanum / cerium chloride in the FitnessBrowser organism panel — picks up the metal_fitness_atlas Priority 2 wet-lab proposal. Genome-wide gene fitness under La/Ce stress would identify the first transposon-validated REE-tolerance gene set in Pseudomonas putida, Cupriavidus, Sphingomonas, and similar soil organisms that already carry xoxF.
6. Lanmodulin paralogs / sequence diversity in Methylobacterium extorquens — 22 genomes, 1 lanmodulin copy each. Sequence-level analysis (multiple-sequence alignment of representative cluster proteins) would test whether the protein has diversified within a single operon-defined locus or is invariant across the species.
7. Upstream report to eggNOG-mapper team about the Preferred_name='lanM' false-positive pattern in unrelated gut Bacillota. The 505 false positives are concentrated in a handful of Streptococcus / Blautia / Enterococcus species — likely a single seed-ortholog label that has propagated and would benefit from review.

---

References

• Pol, A., Barends, T. R. M., Dietl, A., Khadem, A. F., Eygensteyn, J., Jetten, M. S. M., & Op den Camp, H. J. M. (2014). Rare earth metals are essential for methanotrophic life in volcanic mudpots. Environmental Microbiology, 16(1), 255–264. [Originally described in Nature 2014; key XoxF discovery reference.]
• Skovran, E., & Martinez-Gomez, N. C. (2015). Just add lanthanides. Science, 348(6237), 862–863. PMID: 25999489
• Cotruvo, J. A., Featherston, E. R., Mattocks, J. A., Ho, J. V., & Laremore, T. N. (2018). Lanmodulin: a highly selective lanthanide-binding protein from a lanthanide-utilizing bacterium. Journal of the American Chemical Society, 140(44), 15056–15061. PMID: 30351909
• Picone, N., & Op den Camp, H. J. M. (2019). Role of rare earth elements in methanol oxidation. Current Opinion in Chemical Biology, 49, 39–44. PMID: 30308442
• Chistoserdova, L. (2016). Lanthanides: New life metals? World Journal of Microbiology and Biotechnology, 32(8), 138. PMID: 27357954
• Parks, D. H., Chuvochina, M., Chaumeil, P. A., Rinke, C., Mussig, A. J., & Hugenholtz, P. (2022). A complete domain-to-species taxonomy for Bacteria and Archaea. Nature Biotechnology, 38(9), 1079–1086. PMID: 32341564 — GTDB r214 release.
• Schwengers, O., Jelonek, L., Dieckmann, M. A., Beyvers, S., Blom, J., & Goesmann, A. (2021). Bakta: rapid and standardized annotation of bacterial genomes via alignment-free sequence identification. Microbial Genomics, 7(11), 000685. PMID: 34739369
• Cantalapiedra, C. P., Hernández-Plaza, A., Letunic, I., Bork, P., & Huerta-Cepas, J. (2021). eggNOG-mapper v2: functional annotation, orthology assignments, and domain prediction at the metagenomic scale. Molecular Biology and Evolution, 38(12), 5825–5829. PMID: 34597405
• Arkin, A. P., Cottingham, R. W., Henry, C. S., Harris, N. L., Stevens, R. L., Maslov, S., et al. (2018). KBase: The United States Department of Energy Systems Biology Knowledgebase. Nature Biotechnology, 36(7), 566–569. PMID: 29979655
