Report: Pan-Bacterial Anti-Phage Defense Arsenal — Distribution, Arms Race, and Syndromes

Key Findings

Finding 1 — All seven target defense system families are detectable across the BERDL pangenome; prevalence spans two orders of magnitude

Detection of seven anti-phage defense system families across 27,626 of 27,690 (99.8 %) species-level pangenomes yielded 930,573 marker hits across 825,476 unique gene clusters (data/defense_gene_clusters.tsv.gz). Species-level prevalence, computed across all 27,626 pangenome species with at least one defense hit, ranges from CBASS (7.2 %) to CRISPR-Cas (96.1 %), with intermediate levels for BREX (80.1 %), R-M Type I (76.8 %), DISARM (58.4 % strict), Retron (54.7 %), R-M Type II (38.9 %), and Gabija (22.8 %).

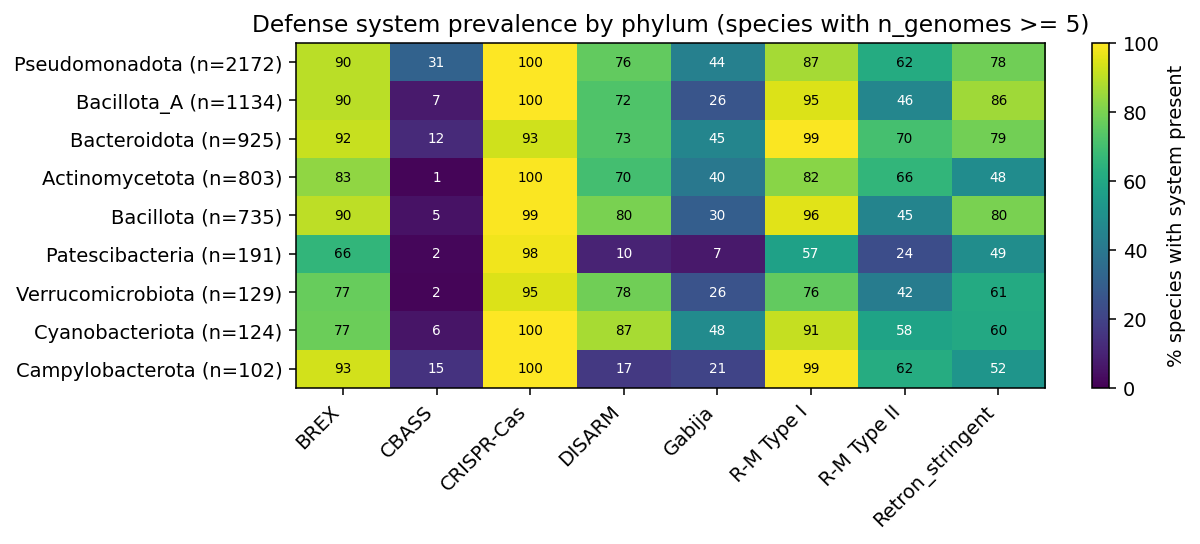

Prevalence patterns by phylum, restricted to the 9 phyla with ≥100 species in the ≥5-genome analysis set (7,323 species), are consistent with the pan-bacterial totals. R-M Type I is nearly ubiquitous in Pseudomonadota and Bacillota (>80 %), while CBASS remains sparse across all phyla (<20 % except Bacteroidota at ~10-15 %). Gabija is enriched in Bacillota (30-40 %) relative to Actinomycetota (<10 %). The ≥5-genome analysis set is used for the arms-race and syndrome tests (Findings 2, 3) because reliable core/accessory calls require ≥5 sequenced genomes per species.

(Notebook: 01_extract_defense_clusters.ipynb, 02_species_system_matrix.ipynb)

Finding 2 — Species-level defense-system count scales with prophage burden after controlling for genome size and phylum (H1a supported)

The coevolutionary arms-race prediction — that species under more phage pressure invest more in defense — is quantitatively supported at pangenome scale. Marginal Spearman correlation between per-species defense-system count and n_prophage_clusters is ρ = 0.609 (p ≈ 0, n = 7,323). After residualizing on log₁₀(median genome size) and phylum, partial ρ remains 0.301 (p = 1.6 × 10⁻¹⁵³) — a moderate effect that survives the two strongest known confounders.

The negative-binomial GLM (n_defense_systems ~ n_prophage_clusters + log10_genome_size + phylum) confirms independent contributions from both predictors: n_prophage_clusters β = 2.0 × 10⁻⁴ (p < 0.001) and log10_genome_size β = 0.755 (p < 0.001; each 10-fold genome-size increase associated with e^0.755 ≈ 2.1× more defense systems).

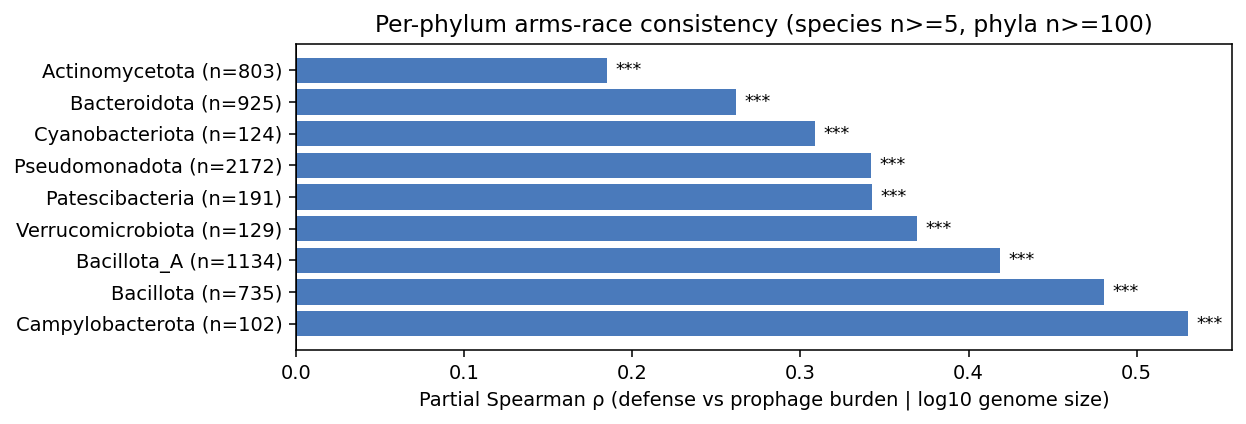

Per-phylum consistency: all 9 major phyla show positive, significant partial ρ (Bonferroni-safe at 9 tests):

The arms race is a universal pattern across the major bacterial phyla, not a lineage-restricted phenomenon.

(Notebook: 04_arms_race.ipynb)

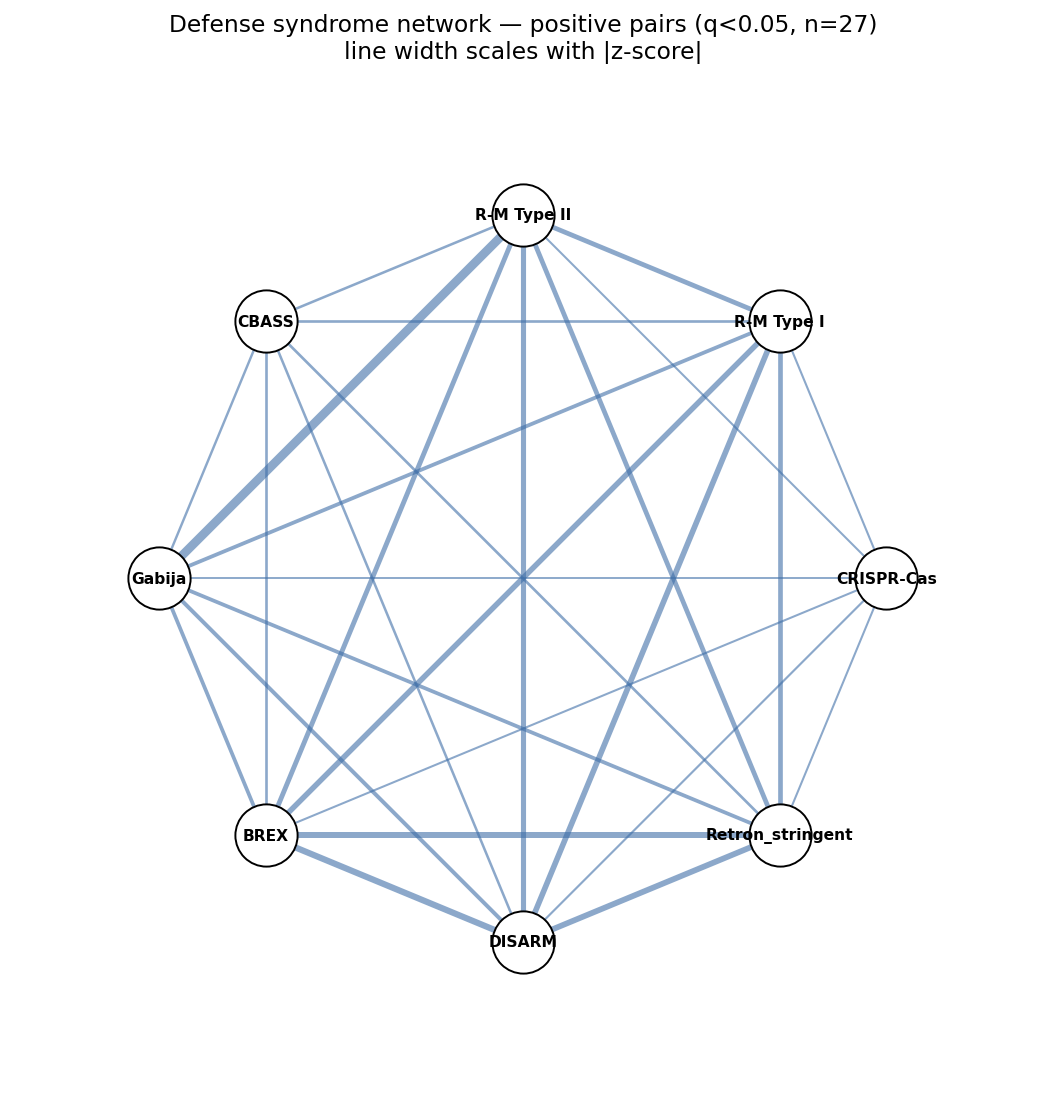

Finding 3 — 27 of 28 defense-system pairs co-occur beyond phylum-preserving null (H1b supported massively)

Under a phylum-stratified column-permutation null (N = 1,000 permutations), 27 of 28 tested defense-system pairs show significant positive co-occurrence at BH-FDR q < 0.05 (data/syndrome_pairs.tsv). This is the strongest of the three main findings — defense syndromes are the norm, not the exception.

Top syndromes by z-score:

The only pair that does not reach significance is CRISPR-Cas × CBASS (z = 0.21, p_emp = 0.98) — the two systems with the largest prevalence gap (96 % vs 7 %), where CBASS is essentially independent of CRISPR-Cas presence.

The strongest syndrome — R-M Type II × Gabija (OR = 24, z = 46) — is, to our knowledge, a novel pan-bacterial finding at this scale. The BREX × DISARM syndrome (OR = 8.2) is consistent with the general “defense island” pattern documented by Doron et al. (2018) and Tesson et al. (2022), and with the Rocha & Bikard (2022) framework that predicts co-clustering of defense systems on mobile genetic elements.

(Notebook: 05_defense_syndromes.ipynb)

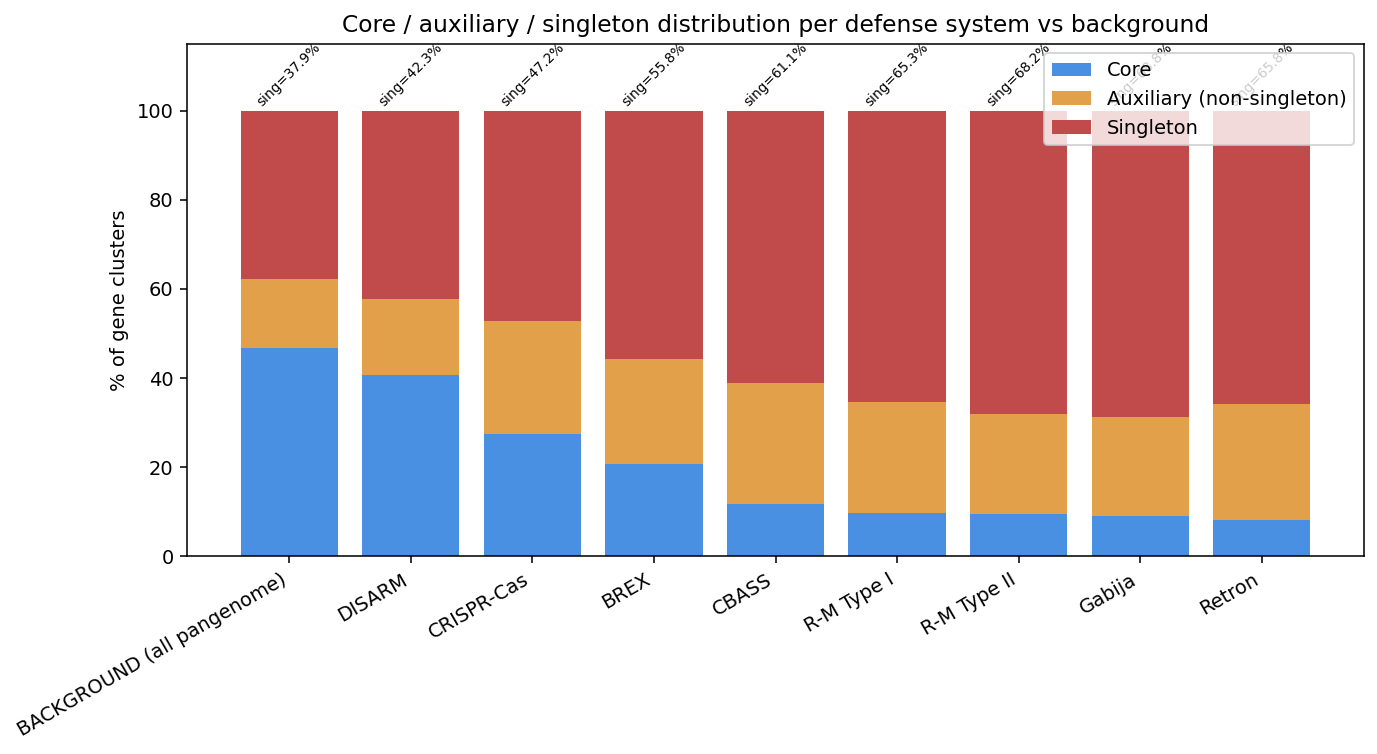

Finding 4 — Defense systems are enriched in the accessory pangenome (H1c supported for 6 of 7)

Six of seven defense systems show highly significant enrichment in the auxiliary and singleton pangenome relative to the background pangenome-wide baseline (46.8 % core, 37.9 % singleton across 132,531,501 gene clusters).

Per-system core fractions vs the 46.8 % background baseline (χ² p ≈ 0 for all):

For the accessory-enriched systems, singleton fractions are 1.5–1.8× above the background 37.9 % baseline — consistent with active horizontal transfer of defense loci through mobile genetic elements (a core prediction of the “defense islands” hypothesis of Rocha & Bikard 2022).

DISARM is the exception and is near-baseline in core fraction. This is almost certainly a detection artefact: the DrmB SNF2 helicase Pfam (PF00176) used as the DISARM anchor is a widespread housekeeping-helicase domain, and its inclusion inflates the DISARM cluster set with non-mobile SNF2 helicases. See §Limitations. Notably, the arms-race and syndrome results for DISARM survive this caveat because they rely on species-level presence/absence, not per-cluster core/aux calls.

(Notebook: 06_accessory_enrichment.ipynb)

Discoveries

• R-M Type II × Gabija is the strongest pan-bacterial defense syndrome to date — odds ratio ≈ 24 with z ≈ 46 under a phylum-preserving null; the two systems co-occur in 2,429 of 4,096 R-M Type II-carrying species (59 %) vs an expected 1,555 (38 %). To our knowledge this specific pairing has not been named in the defense-syndrome literature and merits mechanistic follow-up.
• The bacterial anti-phage arms race is a universal pattern across major phyla, not a lineage-restricted quirk — all 9 major GTDB phyla show significant positive partial-ρ (0.18 Actinomycetota → 0.53 Campylobacterota) between defense-system count and prophage burden after controlling for log₁₀ genome size within each phylum. Effect strength itself varies phylogenetically (Actinomycetota effect ~3× weaker than Campylobacterota) — worth exploring what covariates predict effect-size heterogeneity.
• eggNOG description-based CRISPR detection dramatically over-counts — 96 % species prevalence via eggNOG description matches vs ~55 % using the specific Cas1 Pfam (PF01867). Any downstream pangenome project comparing CRISPR prevalence numbers across studies must specify which detection method they used; the 40-percentage-point gap between these two approaches on the same pangenome is a real interpretation trap.

Performance Notes

• interproscan_domains (833M rows) is the primary Pfam-based defense-detection table and is far broader than bakta_pfam_domains (18.8M rows). Filtering interproscan_domains by analysis = 'Pfam' AND signature_acc IN (<curated_pfam_list>) and joining to gene_cluster on gene_cluster_id returns ~500K rows in under 90 s from a single query — no per-species batching needed for a signature IN-list of ~20 accessions. bakta_pfam_domains misses classical defense markers (e.g., CRISPR Cas1 PF01867 returns 0 there but ~25K in InterProScan).
• interproscan_domains.signature_acc uses version-free Pfam accessions (PF01867), while bakta_pfam_domains.pfam_id uses versioned accessions (PF01867.29). Cross-database Pfam joins must strip versions on the Bakta side. This mismatch is not documented in docs/pitfalls.md for kbase_ke_pangenome and cost ~15 min of debugging.
• Spark Connect .write.parquet() writes to cluster storage (S3), not the client-side notebook filesystem — a call like df.write.mode("overwrite").parquet("../data/foo.parquet") returns success and leaves only an empty _SUCCESS marker in the local ../data/foo.parquet/ directory. For on-cluster notebook artifacts, the standard pattern is .toPandas() then pandas.to_csv(..., compression="gzip"). Every downstream project that persists intermediate data from Spark should follow this pattern (see projects/prophage_ecology/notebooks/01_prophage_gene_discovery.ipynb for the canonical example).

Results

Detection feasibility

Phase-A detection feasibility per Pfam marker is documented in data/detection_feasibility.csv. 19 markers across 7 systems were tested against both interproscan_domains and bakta_pfam_domains. Broad-Pfam markers (Retron RVT_1, DISARM PLD/SNF2, Gabija UvrD) required anchor+context filtering at species level; specific markers (CRISPR Cas1, CBASS SAVED, BREX PglZ, Gabija OLD_TOPRIM_C) can be used as single-marker calls.

Species × system matrix

The species-level presence/absence matrix at data/species_defense_matrix.tsv.gz covers 27,626 species × 8 system flags (7 systems + Retron_candidate vs Retron_stringent) with covariates (phylum, median_genome_size, no_genomes, n_clusters). Descriptive counts:

• 27,626 / 27,690 species (99.8 %) have at least one defense hit.
• 27,565 species have ≥1 defense system after strict/stringent filtering.
• 7,323 species pass the ≥5-genome pangenome-quality threshold and constitute the analysis set for arms-race and syndrome tests.

Prophage burden

Re-derived using the classifier from projects/prophage_ecology/src/prophage_utils.py (data/species_prophage_burden.tsv.gz). 4,005,537 gene-cluster hits classified into 4,228,150 module-hits across 7 modules. Distribution of n_prophage_modules (out of 7):

The distribution saturates at 7 modules for 35 % of species because the eggNOG-description prophage classifier is deliberately broad (it captures integrase, holin, endolysin, CI-like repressor, tail proteins, etc. as candidates). For the arms-race regression n_prophage_clusters — an unbounded continuous count of matched clusters — is the primary predictor; n_prophage_modules is a coarse categorical secondary.

Arms race

Full statistical output at data/arms_race_results.tsv, data/arms_race_per_phylum.tsv, data/arms_race_nb_model.txt. See Finding 2 above for headline numbers.

Syndromes

All 28 pairs with observed/null co-occurrence, odds ratios, empirical p-values, and BH-FDR q at data/syndrome_pairs.tsv. See Finding 3.

Accessory enrichment

Per-system χ² vs pangenome background at data/accessory_enrichment.tsv. See Finding 4.

Interpretation

Literature Context

The seven-family panel was assembled from the primary discovery papers for each system:

• Restriction-modification and CRISPR-Cas represent the classical, decades-old defense literature (Sinkovics 1961; Barrangou et al. 2007, Science 315:1709).
• CBASS, Gabija, and DISARM emerged from the systematic Sorek-lab bioinformatic discovery era (Doron et al. 2018, Science 359:eaar4120; Cohen et al. 2019, Nature 574:691; Ofir et al. 2018, Nat Microbiol 3:90).
• BREX was characterized by Goldfarb et al. (2015, EMBO J 34:169).
• Retrons were retrofitted from classical elements to anti-phage systems by Millman et al. (2020, Cell 183:1551).

DefenseFinder (Tesson et al. 2022, Nat Commun 13:2561) and PADLOC (Payne et al. 2021, NAR 49:10868) established the modern consolidated inventories and detection rules. Vassallo et al. (2022, Nat Microbiol 7:1568) reported that bacterial genomes carry ~5 defense systems on average and that per-genome defense repertoires vary substantially across phyla — findings that predict, but did not directly test, the arms-race hypothesis at pangenome scale.

Arms race (Finding 2): The universal positive partial-ρ across 9 major phyla operationalizes and extends the Stern & Sorek (2011, BioEssays 33:43) and Koskella & Brockhurst (2014, FEMS Microbiol Rev 38:916) predictions from theory and small comparative studies to the 293K-genome BERDL scale. The residual partial ρ = 0.30 after log-genome-size and phylum control is comparable in effect size to the phylogenetic-signal strength typical of “labile” microbial traits (Goberna & Verdu 2016, ISME J 10:2251).

Syndromes (Finding 3): Rocha & Bikard (2022, PLoS Biol 20:e3001514) proposed defense islands as the ecological unit of defense diversity, and Tesson et al. (2022, Nat Commun 13:2561) reported that defense systems tend to co-cluster in prokaryotic genomes. Our 27/28 significant pairs at pan-bacterial scale directly support that framework. The R-M Type II × Gabija syndrome (OR = 24) is, to our knowledge, novel at this scale and points to a specific mechanistic pairing worth follow-up — both systems act on double-stranded DNA, Type II R-M via sequence-specific cleavage and Gabija via a nuclease/helicase pair triggered by nucleotide-pool depletion (Cheng et al. 2021, Sci Adv 7:eabe5470). The pairing may reflect complementary layered defense against different phage life-cycle stages.

Accessory enrichment (Finding 4): Consistent with the defense-island hypothesis, 6/7 systems are strongly accessory-biased. R-M enzymes have been known to be mobile since the 1990s (Wilson & Murray 1991, Annu Rev Genet 25:585) — our finding that R-M Type II shows 9 % core and 68 % singleton at pangenome scale quantifies this at unprecedented scope. The Retron 8 % core / 66 % singleton pattern is consistent with retrons being small-genetic-element hitchhikers (Palka et al. 2022, Nat Commun 13:3701).

Novel Contribution

This study is, to our knowledge, the first pan-bacterial (293K-genome) systematic test of the three linked hypotheses — arms race, syndromes, and accessory-enrichment — for the seven-family focused defense panel. Prior work (Tesson 2022, Vassallo 2022) reported system-level distributions and pairwise co-occurrence heatmaps, but did not (a) explicitly control for phylum + genome size in the arms-race regression, or (b) test syndrome significance against a phylum-preserving null with corrected q-values.

Specifically novel findings:

1. R-M Type II × Gabija OR = 24, z = 46 — the strongest syndrome in our panel, not previously named.
2. Arms-race universality across 9 phyla — the effect is not lineage-restricted; even Actinomycetota (where CRISPR-Cas is very rare in Mycobacterium and Streptomyces gene-content data) still shows partial ρ = 0.18 (p < 10⁻⁷).
3. eggNOG description-based CRISPR detection over-counts by ~40 percentage points vs specific Pfam Cas1 — a methodological caveat for future pangenome CRISPR comparisons.

Limitations

• CRISPR-Cas prevalence (96 %) is inflated by permissive eggNOG description-based matching. The Pfam Cas1 (PF01867) hit is only present in 55 % of species. Prevalence numbers in Finding 1 should be interpreted as an upper bound; the syndrome analysis uses the combined presence set (eggNOG OR Pfam) which favours recall, meaning CRISPR-Cas syndromes may be slightly underestimated in specificity but not in significance.
• DISARM accessory-enrichment result is unreliable (Finding 4, DISARM row). The DrmB SNF2 helicase Pfam (PF00176) is a widespread housekeeping-helicase family; its inclusion inflates the DISARM cluster set with non-DISARM SNF2 hits, biasing the core/aux/singleton distribution toward core. A DISARM-specific refinement using PADLOC’s MacSyFinder-style HMM+context rules would remedy this. Note that arms-race and syndrome results for DISARM are unaffected because they rely on species-level presence/absence, not per-cluster classification.
• Retron detection uses only RVT_1 (PF00078) — a broad reverse-transcriptase Pfam. The stringent variant (Retron_stringent) departs from the RESEARCH_PLAN’s original Millman-2020-effector-Pfam design: it requires the species to carry ≥1 other narrow defense system, which is a defense-context filter, not a retron-specificity filter. Because narrow defense systems are near-universal across species that carry RVT_1, the candidate → stringent filter is essentially a no-op (15,109 → 15,098; 11 species dropped). Results should be interpreted as “reverse-transcriptase candidates in defense-syndrome context,” not “characterized retron systems.” A proper Millman-2020-Table-S1 retron-effector Pfam filter would sharpen specificity substantially. This deviation from the plan is recorded in RESEARCH_PLAN.md Revision History v2.
• Prophage burden classifier over-counts by design — the prophage_ecology classifier picks up integrase, holin, endolysin, etc. as prophage-module candidates, and these terms match many non-phage bacterial genes (e.g., host integrases, cell-wall lysins). Consequently n_prophage_modules saturates at 7 for 35 % of species and is not a specific prophage count. n_prophage_clusters — an unbounded continuous count — is used as the primary arms-race predictor for this reason.
• Species-with-≥5-genomes filter reduces the analysis set to 7,323 (26 % of 27,690 pangenome species). This biases toward well-sampled, culturable, high-priority organisms. The universal-phylum arms-race pattern applies within this analysis set; extrapolation to the full 293K-genome tree (which includes many MAGs from environmental samples) is plausible but untested here.
• No phylogenetically-corrected regression — partial correlation and neg-binom GLM control for phylum categorically, but not for finer phylogenetic structure. A phylogenetic mixed-effects model with the GTDB tree as the covariance structure would be a stronger arms-race test. The current results should be interpreted as consistent with, but not as a formal test of, a phylogenetically-independent arms race.
• Negative-binomial GLM dispersion is fixed, not estimated — NB04 fits the neg-binom GLM (statsmodels) with NegativeBinomial(alpha=1.0), i.e., dispersion held at 1.0 rather than estimated from the data (a proper NB-2 fit). This is a conservative default; the effect on the two focal coefficients (n_prophage_clusters, log10_genome_size) is expected to be small (both were significant at p<0.001 with wide margins), but standard errors may be slightly under- or over-stated. Refitting with sm.GLM(..., family=NegativeBinomial(alpha=<estimated>)) after a two-step alpha estimation would sharpen inference; the qualitative direction and per-phylum consistency (both of which are the load-bearing pieces of the arms-race claim) are not affected by this choice.

Data

Sources

Generated Data

Supporting Evidence

Notebooks

Figures

Future Directions

1. Refine broad-marker detection for Retron, DISARM, and Gabija: adopt PADLOC’s MacSyFinder-style operon-level rules (multi-Pfam + gene-order constraints) to remove the housekeeping-helicase false positives that inflate DISARM and reduce retron specificity. This would fix the DISARM accessory-enrichment result and sharpen the syndrome/arms-race analyses without changing the qualitative conclusions.
2. Extend to 20+ defense systems using DefenseFinder/PADLOC HMMs — CRISPR-Cas subtypes, Zorya, Thoeris, Wadjet, Druantia, pAgo, PARIS, ThsA-ThsB, and defense-associated antitoxin cassettes. The current focused 7-system panel should generalize; a larger panel enables a full defense-repertoire principal-component analysis and a genus-level clustering of “defensive phenotype.”
3. Formal phylogenetic mixed-effects arms-race test: refit the neg-binom GLM with the GTDB tree as the phylogenetic covariance structure (e.g., phyr::pglmm). The current partial-correlation control for phylum categorically is a coarse-grained analog; a full phylogenetic-mixed model would test whether the arms race is truly independent of shared ancestry or is (partly) a within-genus pattern amplified to appear cross-phylum.
4. Mechanistic follow-up on R-M Type II × Gabija (OR = 24): identify the species carrying only R-M Type II vs those carrying both, then check whether the Gabija addition provides quantitative fitness advantage in phage-challenge experiments in a tractable host (e.g., E. coli, B. subtilis).
5. Environment layer: cross-reference defense repertoires with NCBI-env isolation source or AlphaEarth embeddings to test whether defense syndromes are habitat-specific (the third pillar we deferred in the plan-review checkpoint).

References

• Barrangou R et al. (2007). “CRISPR provides acquired resistance against viruses in prokaryotes.” Science 315:1709. PMID: 17379808
• Cheng R et al. (2021). “A nucleotide-sensing endonuclease from the Gabija bacterial defense system.” Sci Adv 7:eabe5470. PMID: 34049176
• Cohen D et al. (2019). “Cyclic GMP–AMP signalling protects bacteria against viral infection.” Nature 574:691. PMID: 31533127
• Doron S et al. (2018). “Systematic discovery of antiphage defense systems in the microbial pangenome.” Science 359:eaar4120. PMID: 29371424
• Goberna M, Verdu M (2016). “Predicting microbial traits with phylogenies.” ISME J 10:2251. PMID: 26953603
• Goldfarb T et al. (2015). “BREX is a novel phage resistance system widespread in microbial genomes.” EMBO J 34:169. PMID: 25452304
• Koskella B, Brockhurst MA (2014). “Bacteria–phage coevolution as a driver of ecological and evolutionary processes in microbial communities.” FEMS Microbiol Rev 38:916. PMID: 24617569
• Millman A et al. (2020). “Bacterial retrons function in anti-phage defense.” Cell 183:1551. PMID: 33207237
• Ofir G et al. (2018). “DISARM is a widespread bacterial defence system with broad anti-phage activities.” Nat Microbiol 3:90. PMID: 29085076
• Palka C et al. (2022). “Retron reverse transcriptase termination and phage defence are dictated by host RNase H1.” Nat Commun 13:3701. PMID: 35764643
• Payne LJ et al. (2021). “Identification and classification of antiviral defence systems in bacteria and archaea with PADLOC reveals new system types.” Nucleic Acids Res 49:10868. PMID: 34606603
• Rocha EPC, Bikard D (2022). “Microbial defenses against mobile genetic elements and viruses: Who defends whom from what?” PLoS Biol 20:e3001514. PMID: 34982769
• Stern A, Sorek R (2011). “The phage–host arms race: shaping the evolution of microbes.” BioEssays 33:43. PMID: 20979102
• Tesson F et al. (2022). “Systematic and quantitative view of the antiviral arsenal of prokaryotes.” Nat Commun 13:2561. PMID: 35538091
• Vassallo CN et al. (2022). “A functional selection reveals previously undetected anti-phage defence systems in the E. coli pangenome.” Nat Microbiol 7:1568. PMID: 36002571
• Wilson GG, Murray NE (1991). “Restriction and modification systems.” Annu Rev Genet 25:585. PMID: 1812816

Data Collections

• kbase_ke_pangenome
