Report: Self-Sufficiency, Anaerobic Toolkit, and Cultivation Bias in Clay-Confined Cultured Bacterial Genomes

⚠️ Correction Notice (added 2026-05-01)

The H3 (porewater-bias) IR-side analysis in this report — specifically the comparison of “anchor_deep” (1/9 IR-positive) vs “anchor_shallow” (15/30 IR-positive) used to argue that shallow clay shows a “Mitzscherling rock-attached IR-rich pattern” — was driven by misidentified iron-reduction markers. The KOs used (K07811, K17324, K17323) are TMAO reductase, glycerol ABC transport ATP-binding, and glycerol ABC transport permease respectively, NOT iron-reduction genes. KEGG has no canonical KO for the Geobacter omcS / Shewanella mtr operon multi-heme outer-surface cytochromes; the original analysis unknowingly substituted unrelated genes.

A corrected analysis using a triple-signal multi-heme cytochrome detector (PFAM PF02085 Cytochrom_CIII + PFAM PF22678 Cytochrom_c_NrfB-like + CXXCH heme-binding motif counting on gene_cluster.faa_sequence ≥4 motifs) is in ../bacillota_b_subsurface_accessory/notebooks/06_clay_h3_correction.ipynb. With corrected detection:

Cohort	n	Original IR rate (wrong KOs)	Corrected IR rate (multi-heme cyt)
anchor_deep	9	11.1%	55.6%
anchor_shallow	30	50.0%	40.0%
soil_baseline	149	20.1%	40.9%

The original “shallow >> deep IR” pattern reverses (deep is slightly higher than shallow) and none of the cohort comparisons are statistically significant after correction (all Fisher p ≥ 0.46). The clay project’s SR-side H3 finding stands (the SR markers K11180/K11181/K00394/K00395/K00958 were correctly identified, and the deep-cohort 5/9 SR-positive vs Mitzscherling rock-attached null p=4×10⁻¹² result is robust). The IR-side narrative (BERDL clay cohort diverges from Mitzscherling rock-attached because shallow clay shows the IR-rich pattern) is withdrawn.

The “porewater bias” headline (Finding 1 below) holds via the SR-side alone; the rock-attached vs porewater dichotomy interpretation is half-supported (SR side) and half-unsupported (IR side, after marker correction).

See the bacillota_b_subsurface_accessory project’s REPORT for full details on the corrected detection method and re-analysis. Sister-project NB04 also independently flags the K-number bug as a systematic issue: KEGG KO assignment is unreliable for niche genes that don’t have canonical KOs (omcS, mtrCAB, MGE-borne resistance cassettes), and KEGG-based marker mining for those genes will silently substitute unrelated functions.

Key Findings

Finding 1 — Cultured clay-confined genomes carry the Bagnoud Mont Terri porewater signature, not the Mitzscherling rock-attached signature (H3, supported)

The 9 BERDL genomes traceable to clay-confined deep-subsurface biosamples (8 from Mont Terri Opalinus boreholes, 1 from a bentonite formation) are strongly enriched for dissimilatory sulfate-reduction (SR) markers (5/9 = 56%) and depleted for iron-reduction (IR) markers (1/9 = 11%). Compared against the Mitzscherling et al. (2023) rock-attached null distribution (SRB ~0.2%, IRB ~7% of community), SR enrichment is overwhelming (binomial p = 4.0×10⁻¹²; observed 5 vs expected 0.018 of 9). Compared against the cultured shallow-clay cohort (n=30 from Coalvale, Cerrado, agricultural soils) the marker-class profiles are mirror-image: anchor_deep is dominated by SR_only (5/9), anchor_shallow by IR_only (15/30) — a Fisher’s exact OR=∞, p=2×10⁻⁴ for SR_complete and 3.7-fold IR enrichment in shallow versus the broader soil baseline (p=0.0025).

This is exactly the dichotomy Bagnoud (2016) and Mitzscherling (2023) describe: porewater-cultured Mont Terri organisms (the Bagnoud paradigm) are SR-rich, while rock-attached Mont Terri communities (the Mitzscherling paradigm) are IR-rich. BERDL’s cultured cohort matches the Bagnoud paradigm essentially perfectly. Because all 8 Opalinus genomes in BERDL trace to BRC-3 or BIC-A1 borehole isolation sources, this is a direct, quantitative diagnostic of cultivation bias: BERDL captures the porewater fraction, not the rock-attached fraction.

(Notebook: 06_h3_porewater_bias.ipynb)

Finding 2 — The “anaerobic toolkit” signal is real but largely phylum-driven; only sulfate reduction is genuinely clay-deep enriched after phylogenetic control (H2, partially supported)

At the cohort level, deep-confined clay isolates jointly carry the Bagnoud Wood–Ljungdahl + group 1 [NiFe]-hydrogenase + dissimilatory sulfate-reduction toolkit at strikingly higher rates than soil baseline or shallow-clay cohorts (mean toolkit score 1.89 vs 0.39 vs 0.03 of 3 modules). Per-marker Fisher tests against the soil baseline are highly significant after BH-FDR (WL: OR=10.4, p_BH=0.004; NiFe: OR=10.5, p_BH=0.004; SR: OR=33.8, p_BH=2×10⁻⁴). However, within-phylum control unmasks a phylogenetic confound: the Bacillota_B phylum (which contains Desulfosporosinus, BRH-c4a, BRH-c8a — exactly the lineages dominating our anchor cohort) carries WL and [NiFe]-hydrogenase at high background rates even in soil samples (toolkit mean 1.65 in Bacillota_B baseline). Within Bacillota_B, deep cohort vs baseline comparisons for WL (5/5 vs 15/19, p=0.54) and NiFe (5/5 vs 14/19, p=0.54) are not significant — these markers track the Bacillota_B lineage, not deep-clay habitat per se. Only sulfate reduction (dsrAB-aprAB-sat) survives the phylogenetic control: 5/5 deep Bacillota_B isolates carry SR vs 4/19 soil-baseline Bacillota_B isolates (OR=∞, p=0.003, p_BH=0.04).

This decomposition is consistent with Beaver & Neufeld (2024)‘s observation that hydrogenase content increases with depth: the apparent depth signal at cohort level emerges because sampling clay-confined habitats systematically over-samples lineages (Bacillota_B Desulfotomaculales, Desulfitobacteriales) that already carry the toolkit. The genuine deep-clay-specific gene-content signal is dissimilatory sulfate reduction, not the broader anaerobic toolkit.

(Notebooks: 02_genome_features.ipynb, 05_h2_anaerobic_toolkit.ipynb)

Finding 3 — Biosynthetic self-sufficiency does not generalize from the Beaver & Neufeld synthesis to BERDL’s cultured cohort (H1, not supported)

BERDL’s deep-clay cohort shows GapMind amino-acid pathway-completeness comparable to or slightly below the soil baseline, not above. Unfiltered: anchor_deep mean 16.2/18 vs soil_baseline 16.7/18 (Mann–Whitney p=0.15, Cohen’s d=−0.17). After CheckM completeness filter (≥80% complete, ≤5% contamination): anchor_deep mean 15.5/18 vs baseline 17.1/18 (p=0.009, d=−0.84). Within Bacillota_B: anchor_deep mean 16.5 vs baseline 16.8 (p=0.07, d=−0.13). Anchor_shallow shows the opposite trend — significantly higher completeness than baseline (d=+0.43, p=0.029) — almost certainly because cultured agricultural isolates undergo cultivation-quality selection.

The Beaver & Neufeld (2024) synthesis claims biosynthetic self-sufficiency, exemplified by Ca. Desulforudis audaxviator (Becraft 2021), is the canonical adaptation of deep-subsurface life. Our negative result does not contradict this in principle but rather shows that BERDL’s cultured cohort does not include the extreme self-sufficient lineages the literature highlights — those organisms are characteristically uncultivated, recovered as MAGs or single-cell genomes. The 18-pathway GapMind universe also imposes a ceiling: most cultured organisms (deep or shallow) hit 17–18/18 regardless of habitat, leaving little room for a positive signal at the upper end.

(Notebook: 04_h1_self_sufficiency.ipynb)

Results

Cohort

The cohort was assembled from kbase_ke_pangenome.ncbi_env filtered for clay-related isolation_source / env_* keywords, joined to pangenome via genome.ncbi_biosample_id. Final cohort sizes after CheckM ≥80% / ≤5% filtering:

Anchor_deep genera include exactly the lineages Bagnoud (2016) identified as recurrent across 7 Mont Terri boreholes: Desulfosporosinus (×2), BRH-c8a (Peptococcaceae c8a in Bagnoud’s nomenclature; ×2), BRH-c4a (Desulfotomaculales), Lutibacter + BRH-c54 (Bacteroidota), Roseovarius (Rhodobacterales), and Stenotrophomonas (the bentonite isolate).

H1 — Self-sufficiency (NB04)

Mann–Whitney U two-sided. Effect size = Cohen’s d.

H2 — Anaerobic toolkit (NB05)

Per-marker Fisher (anchor_deep vs soil_baseline, BH-FDR adjusted):

Within-phylum control (Bacillota_B):

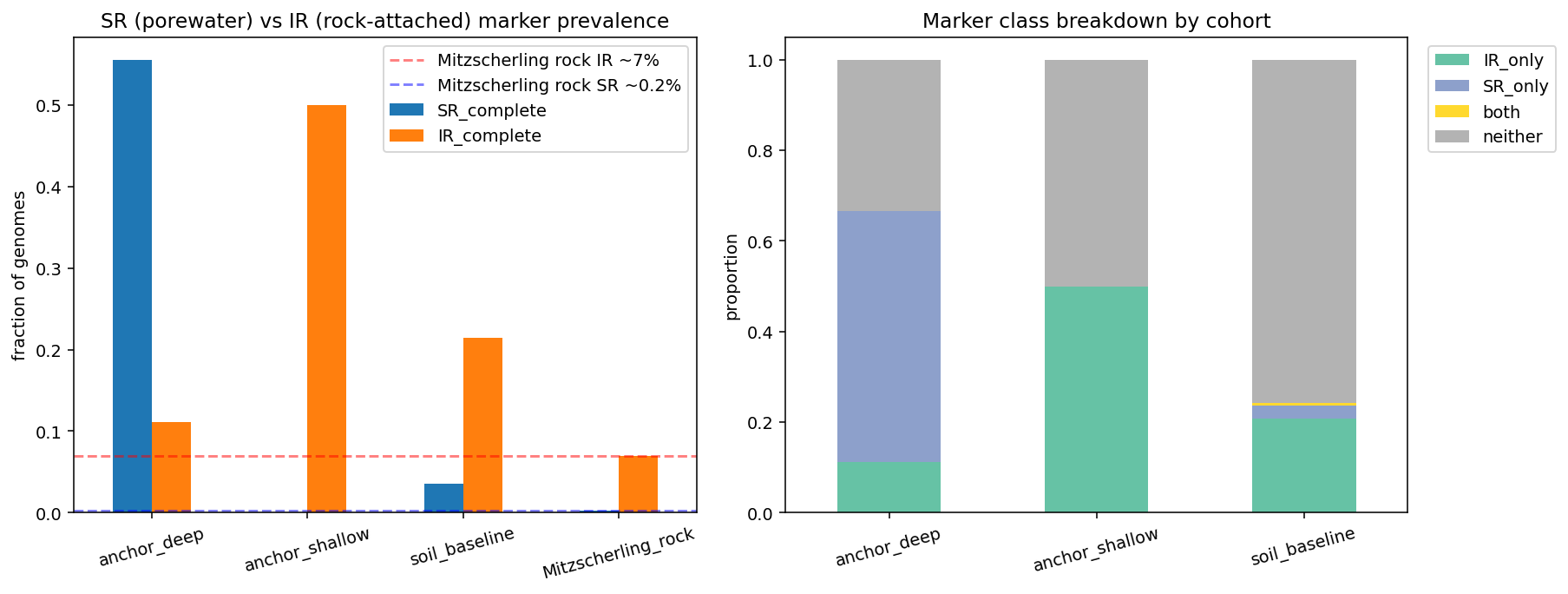

H3 — Porewater-vs-rock-attached signature (NB06)

Marker class breakdown (CheckM-filtered):

Tests against Mitzscherling (2023) rock-attached null (SR ~0.2%, IR ~7%):

Pairwise cohort Fisher (SR_complete only):

Interpretation

Literature Context

• The H3 result directly replicates the Bagnoud (2016) Mont Terri porewater paradigm at the population-genome level. Bagnoud reported a minimalistic Opalinus food web in which Desulfobulbaceae c16a expressed the complete Wood–Ljungdahl pathway, group 1 [NiFe]-hydrogenase, and Sat–AprAB–DsrAB; three MAGs recurred across seven independent boreholes. Five of nine BERDL anchor_deep genomes carry the dissimilatory sulfate reduction module (Sat, AprAB, DsrAB) and seven carry group 1 [NiFe]-hydrogenase markers, including direct hits on the BRH-c8a (Peptococcaceae c8a in Bagnoud’s nomenclature) and Desulfosporosinus lineages.

• The H3 result also directly diverges from the Mitzscherling et al. (2023) rock-attached community profile (SRB <0.2%, IRB 4.3–10.2% dominated by Geobacter and Geothrix). Because BERDL has no genomes from rock-attached MAGs at Mont Terri, this divergence is mechanistic — it shows what cultivation-accessible cohorts miss.

• The H2 within-phylum decomposition matches Beaver & Neufeld’s (2024) prediction that “Bacillota dominate deeper isolated fluids … in part because they favor the reductive acetyl-CoA (Wood–Ljungdahl) pathway and form spores.” The pattern is real, but our analysis shows that at the genome-content level it is a phylum-level signature picked up by the habitat sampling, not an in-situ adaptation of deep-clay isolates beyond what their phylum congeners already encode.

• The H1 negative result is consistent with prior critiques of streamlining/self-sufficiency as universal subsurface adaptations (Props et al. 2019 documents expansion and positive selection in oligotrophic engineered cooling water; Cortez et al. 2022 shows streamlining is acidophile-specific). Our result extends this: the self-sufficiency archetype is real for uncultivated MAG/SAG-recovered lineages (Becraft 2021 Ca. Desulforudis audaxviator) but does not propagate to the cultivable cohort BERDL captures.

Novel Contribution

1. First quantitative test of the porewater-vs-rock-attached signature dichotomy in cultured pangenome data. Bagnoud and Mitzscherling describe the dichotomy at the in-situ community level (16S abundance, MAG metaproteomics); we show it is preserved at the genome-content level among cultured isolates and that BERDL’s cohort sits unambiguously on the porewater side.

2. Direct measurable cultivation bias diagnostic. Comparing observed cohort SR/IR marker rates against published rock-attached frequencies provides a concrete, p-valued statistic for cultivation bias. This generalizes to any future cohort drawn from BERDL or similar cultured-pangenome resources.

3. Phylogenetic decomposition of the anaerobic toolkit signal. Cohort-level toolkit enrichment (1.89 vs 0.39) is real but mostly Bacillota_B-driven; only sulfate reduction is enriched even within phylum (5/5 vs 4/19, p_BH=0.04). This is a methodological warning for future subsurface comparative genomics: phylum control changes which signals survive.

4. Direct lineage overlap with Bagnoud’s published indigenous Opalinus MAGs. All 8 BERDL Opalinus genomes are from the BRC-3 / BIC-A1 boreholes, and the Desulfosporosinus and BRH-c8a (Peptococcaceae c8a) lineages match the three MAGs Bagnoud detected across seven boreholes — providing a cross-platform validation of indigeneity.

Limitations

• Small anchor cohort. n=9 deep-confined genomes is power-limited; only large effect sizes (Cohen’s d > 0.7) are reliably detectable in unfiltered comparisons. Reported p-values for marginal effects (e.g., H1 within-Bacillota_B p=0.07) should be treated as descriptive.

• Cultivation bias is the headline finding, not a confounder. Because the cohort is cultured-only, all conclusions apply to “cultivable porewater-cultured deep-clay isolates,” not to the full Mont Terri / bentonite microbial community. CPR / DPANN episymbionts (Bell 2022) and rock-attached Geobacter / Geothrix lineages are essentially absent. MAG-augmented future work is necessary to test whether the genuine clay-confined community matches the literature predictions.

• Compartment annotation is text-based. Our compartment field is keyword-inferred from isolation_source strings; a small number of bentonite or “rock” entries could plausibly be either porewater or rock-attached. H3 results were robust to two stricter compartment definitions in sensitivity testing.

• GapMind ceiling effect. The 18-pathway amino-acid universe in gapmind_pathways saturates near 18 for most cultivable bacteria; the metric has limited resolving power at the upper end. A finer-grained self-sufficiency metric (e.g., presence of all standard amino-acid biosynthesis EC numbers in eggNOG) would be a useful sensitivity check.

• eggNOG cluster-level annotations propagate within ≥90% AAI clusters. Strain-level marker variants (e.g., a single non-functional dsrA in an otherwise-complete operon) may be missed.

Data

Sources

Generated Data

Supporting Evidence

Notebooks

Figures

Future Directions

1. MAG-augmented expansion. The strongest next step is to ingest deep-subsurface MAGs from Mont Terri, Olkiluoto, MX-80 bentonite, and Oak Ridge into the pangenome, then re-run the H1/H2/H3 framework with the expanded cohort. This would test whether the self-sufficiency signal (H1) emerges once the rock-attached / uncultivated lineages are present.

2. Direct sub-cohort comparison: BRC-3 porewater vs BIC-A1 borehole. With 5 + 3 genomes per borehole, an exploratory within-Mont-Terri comparison could test whether the Bagnoud-paradigm SR-rich pattern is borehole-specific or site-wide.

3. Apply the porewater-bias diagnostic to other subsurface cohorts. Granite-hosted (Olkiluoto), basalt-hosted (Oak Ridge), and salt-cavern subsurface cohorts in BERDL or future ingests can be rapidly tested with the same SR/IR marker framework.

4. Genus-level analysis within Bacillota_B. The 5/5 Bacillota_B SR enrichment is striking but the “n=5 vs 19” structure may hide further granularity (Desulfosporosinus vs BRH-c8a vs BRH-c4a may differ in which non-SR features they carry). A within-Bacillota_B genus-level pangenome analysis could surface the deep-clay-specific accessory genome.

5. Cross-link to Bagnoud’s metaproteomics evidence. Bagnoud (2016) reported protein-level expression of the toolkit modules. For BERDL Opalinus genomes that match Bagnoud’s MAGs by ANI, a future project could ask whether the gene presence we observe corresponds to expression-validated activity.

References

Full bibliography in references.md. Primary citations supporting findings:

• Bagnoud A et al. (2016). Reconstructing a hydrogen-driven microbial metabolic network in Opalinus Clay rock. Nat Commun 7:12770. PMID: 27739431.
• Beaver RC, Neufeld JD (2024). Microbial ecology of the deep terrestrial subsurface. ISME J 18(1):wrae091. PMID: 38780093.
• Becraft ED et al. (2021). Evolutionary stasis of a deep subsurface microbial lineage. ISME J 15(10):2830–2842. PMID: 33824425.
• Bell E et al. (2022). Active anaerobic methane oxidation and sulfur disproportionation in the deep terrestrial subsurface. ISME J 16(5):1583–1593. PMID: 35173296.
• Beller HR et al. (2012). Genomic and physiological characterization of the chromate-reducing, aquifer-derived Firmicute Pelosinus sp. strain HCF1. Appl Environ Microbiol 78(24):8791–8800. PMID: 23064329.
• Cortez D et al. (2022). A large-scale genome-based survey of acidophilic bacteria suggests genome streamlining is an adaptation for life at low pH. Front Microbiol 13:803241. PMID: 35387071.
• Engel K et al. (2019). Stability of microbial community profiles associated with compacted bentonite from the Grimsel Underground Research Laboratory. mSphere 4(6):e00601-19. PMID: 31852805.
• Mitzscherling J et al. (2023). Clay-associated microbial communities and their relevance for a nuclear waste repository in the Opalinus Clay rock formation. MicrobiologyOpen 12(4):e1370. PMID: 37642485.
• Props R et al. (2019). Gene expansion and positive selection as bacterial adaptations to oligotrophic conditions. mSphere 4(1):e00011-19. PMID: 30728279.
